SUS 304 Johnson Wedge Wire Screen 273mm 10 " Continuous Slot Screen Pipe
Product Description:
Johnson Wedge Wire Screen is welded by V wire and support rod,creating slots which enlarge inwardly, meeting the most demanding standards for ruggedness,durability, consistency and slot openings. The v-shaped opening allows only two contact points with the particles, thus preventing any risk of clogging.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.
Specificarion:
| MaterialA | Stainless steel |
| Grade | 304 |
| O.D | 273 mm |
| Size | 10 " |
| Length | 6 m |
| Solt size | 1.0 mm |
| End connection | Thread coupling ( male / female ) |
| Wire size | 118 # |
| Support rod | 140 # |
| Wire shape | V shape |
Characteristic:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Regular Specification:
Profile wire
Width(mm): 1.0, 1.5, 2.0, 2.3, 3.0, 3.2,
Height(mm): 1.5, 2.0, 2.5, 3.5, 4.6, 6.0
support rods
Width(mm): 2.0, 2.2, 2.3, 2.5, 3.2
Height(mm): 2.5, 3.0, 3.5, 4.6, 6.0
Round rods : diameter from 2.50 mm to 6.0 mm
Note: other wires and rods available upon request
Slot size(mm): 0.10, 0.25, 0.70, 1.0, 2.0, 5.0 ... 45mm also achieved upon request.
Diameter(mm):48, 63, 89, 117, 168, 219, 273, 325, 500, 800, 1000
Length: up to 6 meters.
End connection: Plain beveled ends for welding or threaded male &female coupling(spiral).
Other sizes available on request. Deep well construction specifications available on question.
Water well screens are designed for depths of 100 m, 200 m, 350 m & 600 m.
Use:
Johnson Wire Wrap Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
water well
water supply systems
Refining & petrochemical

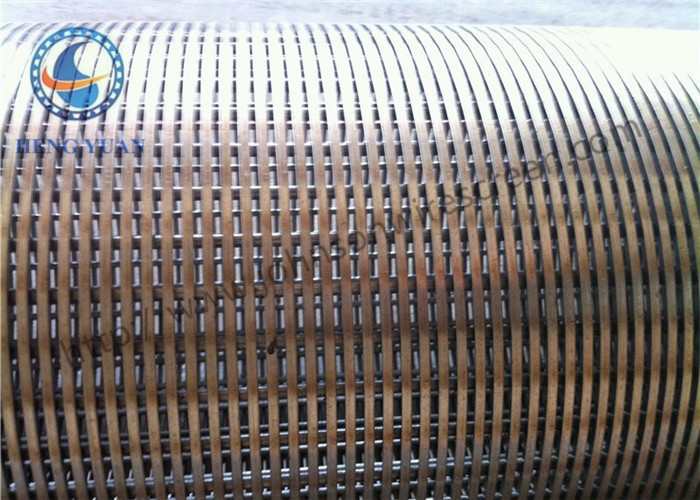

Pictures:
